Ultrasonic Thickness Gauge Tester Sound Velocity Meter Metal Width Meter AS860

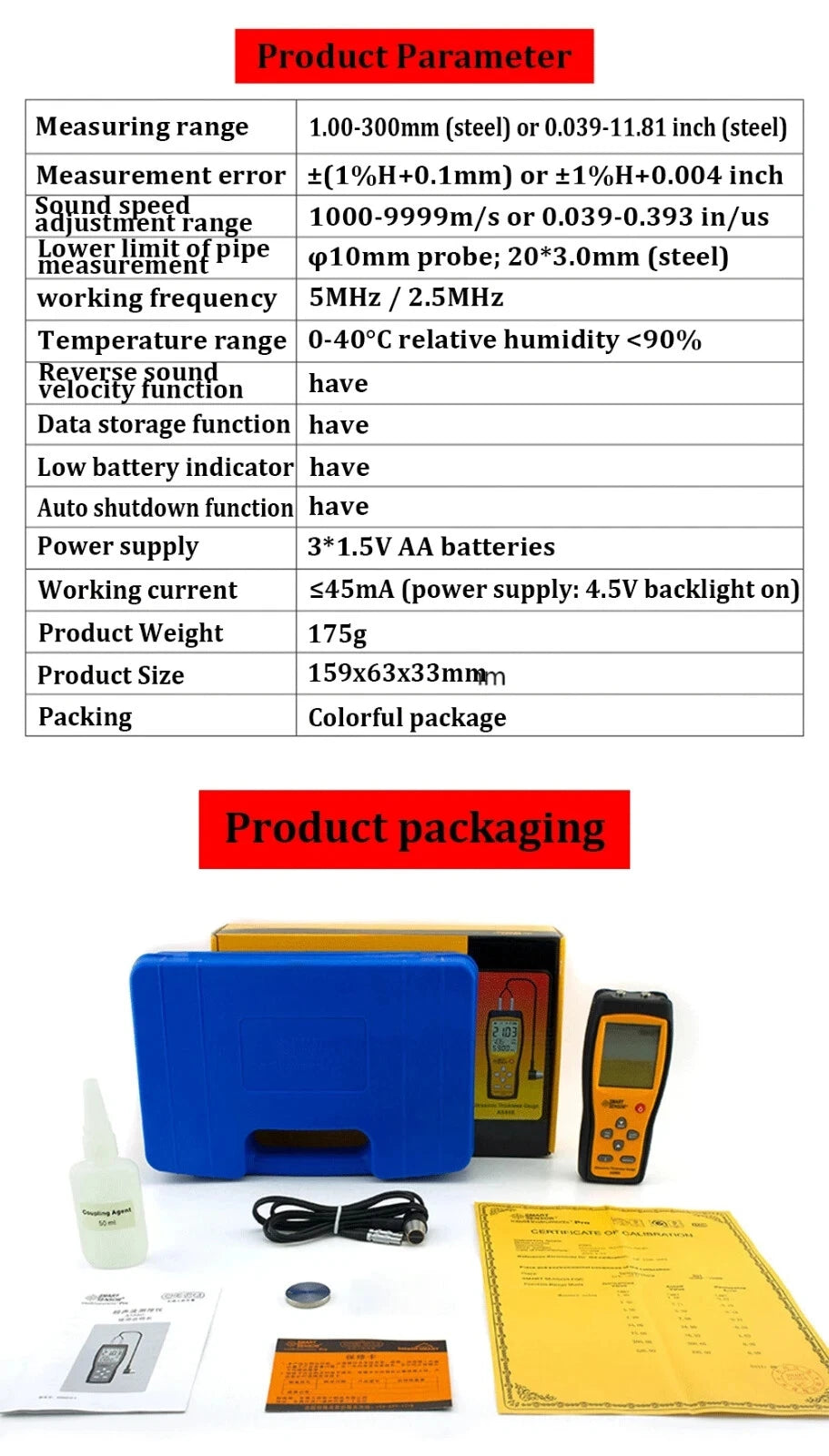

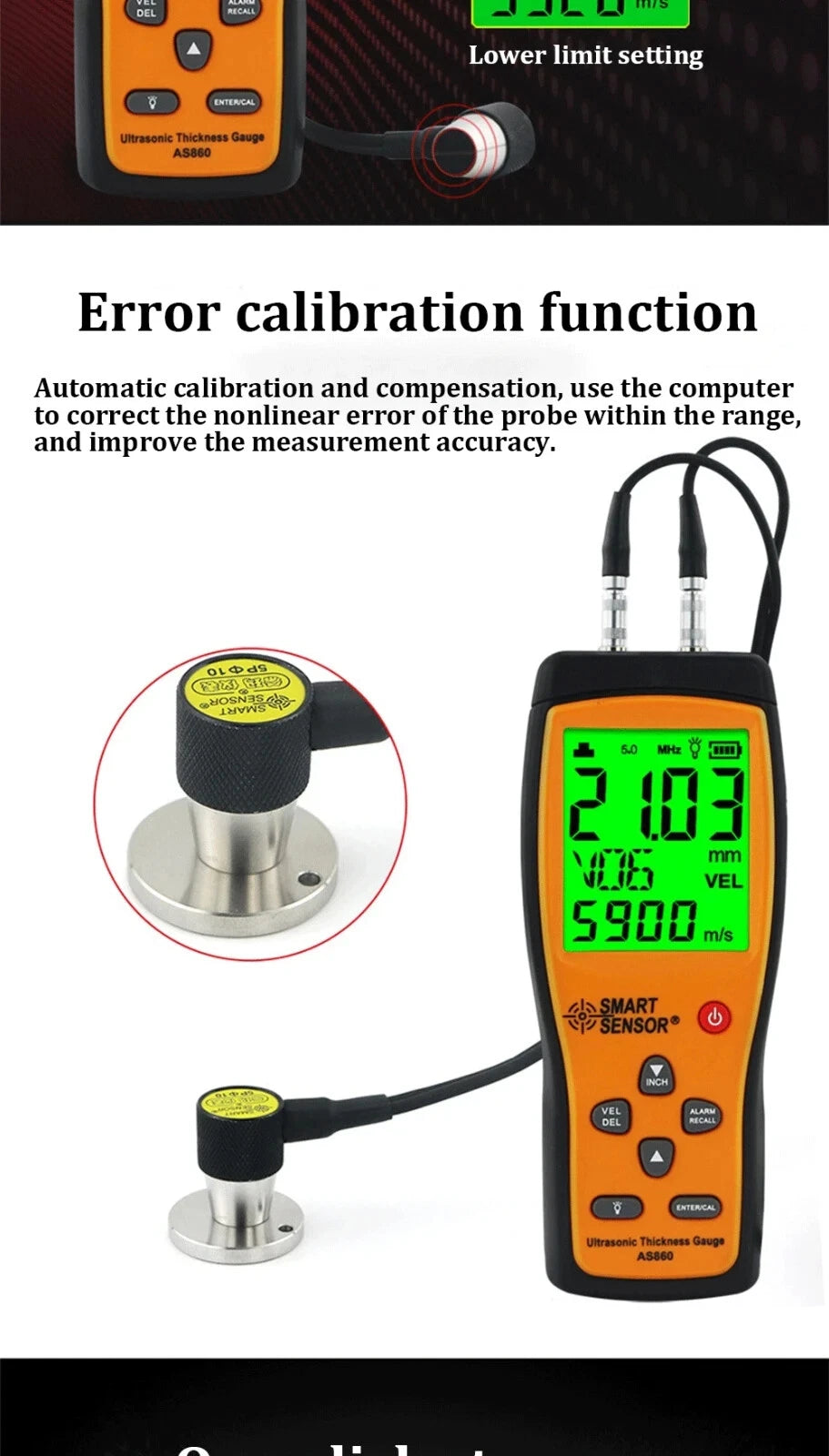

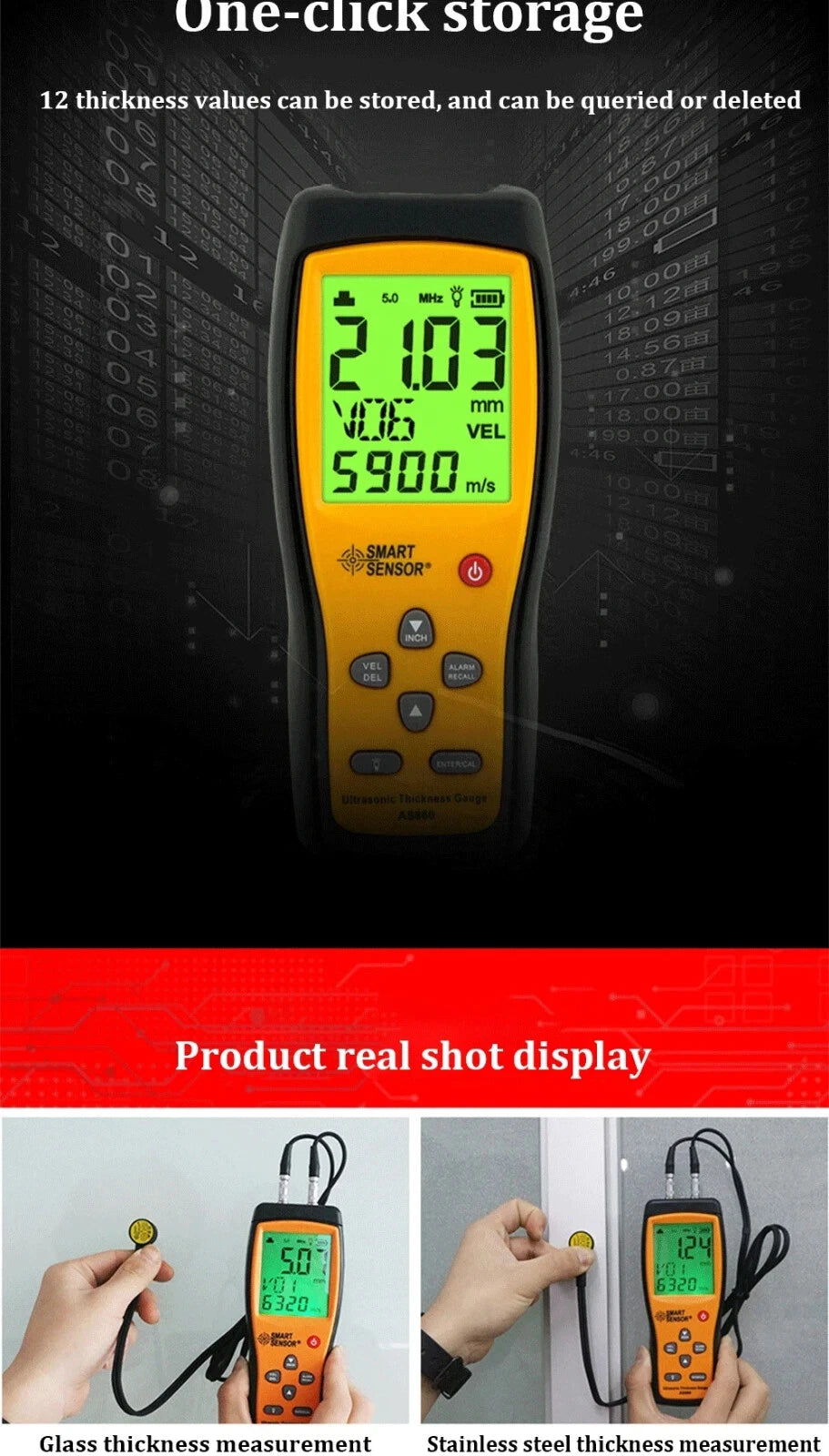

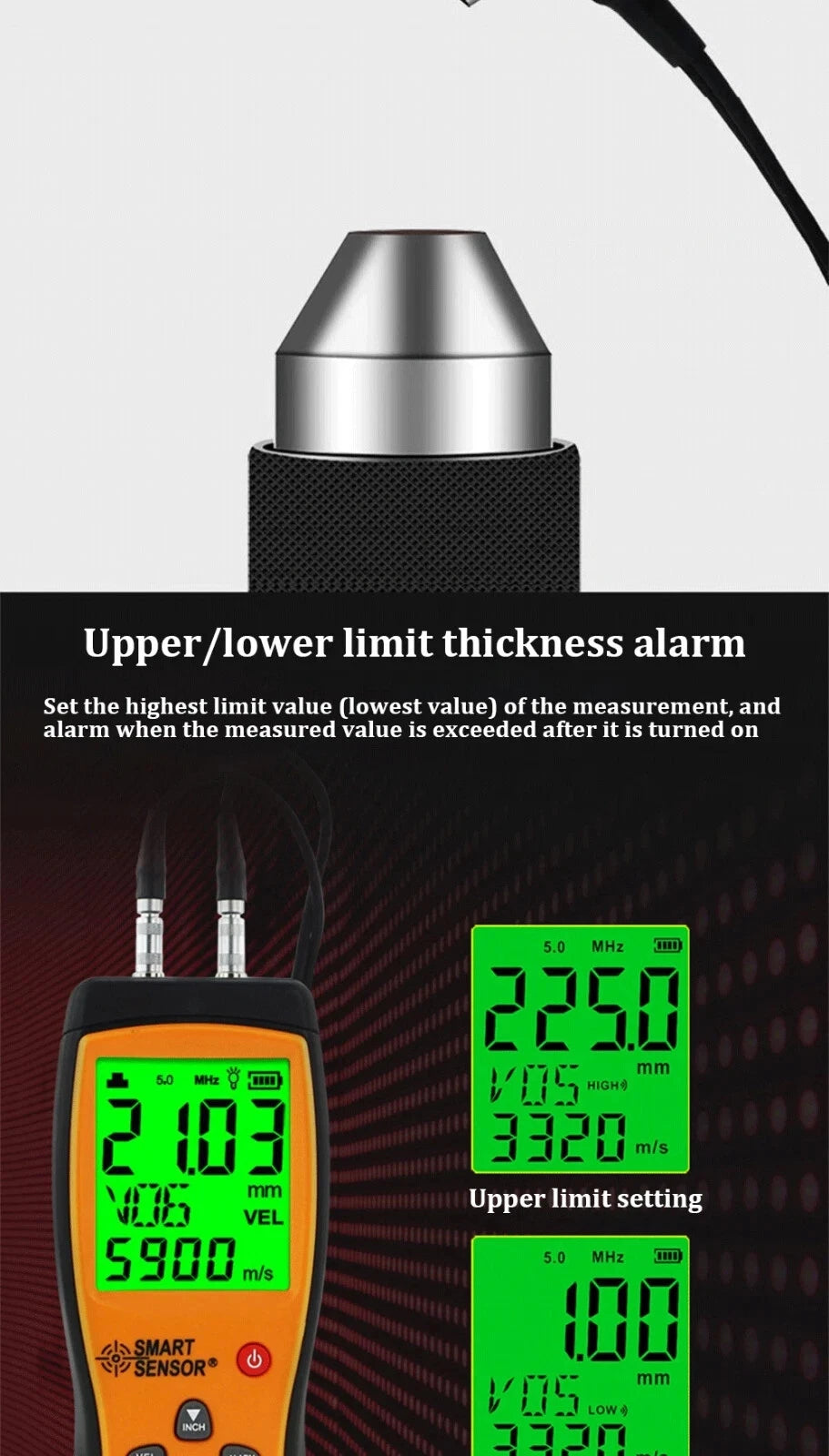

Australian Supplier, 1 to 3 days delivery in Australia if needed !!! Smart Sensor AS860 Ultrasonic thickness gauge Digital sheet metal Measuring range: 1.0 to 300mm (steel) Sound Velocity Meter This unit is an intelligent handheld product, which adopts the ultrasonic measuring principle and is controlled by a microprocessor, providing quick and precise measurement of thickness for most industrial materials. This unit is suitable for measuring materials that are good ultrasonic conductors such as metal, plastic, ceramic, glass, etc., as long as the measured part is in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron due to its big crystalloid composition. Features: Auto calibration to assure the accuracy Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy 12 sound velocities for different material Coupling status indication 12 thickness measurement data store and recall Thickness alarm setup Backlight function Low battery indication Auto power off Specifications: Measuring range: 1.00 to 300.0mm(steel) Accuracy:  (1%H+0.1mm) Resolution: 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm) Minimum limit for tube measuring steel: 15*2.0mm( 6 transducer) 20*3.0mm( 10 transducer) Sound velocity: 1000 to 9999m/s Thickness 20mm, the accuracy of velocity: 1mm/H 100% Thickness 20mm, the accuracy of velocity: 5% Operating environment: Operation temperature: 0°Cto 40°CTemperature of workpiece: < 60 Relative humidity: <90%  Do not apply in violent vibration /erosive material. Avoid impact and humidity Power supply: 1.5V AAA * 3 PCS (not included due to air limit) Operation current: 35mA (with backlight on) Frequency: 5MHz The minimum limit for tube measuring: is 20*3mm(steel) Auto Zero Calibration: Yes Auto linear compensation: Yes Coupling Indicator: Yes Battery Indication  / Auto Power Off: Yes Product Net Weight / Product Size:  240g / 150*80.5*34mm Packing List: 1 x Digital Ultrasonic Thickness Gauge 1 x Probe 1 x Carry Case 1 x Calibration Block 1 x User's Manual
